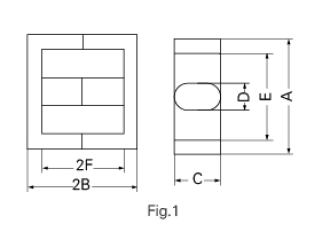

型号 | 图例 | 尺寸 | ||||||
A | B | C | D | E min | F | G | ||
EDR2510 | 2 | 25.0±0.4 | 5.15±0.15 | 12.15±0.20 | 21.6±0.3 | 8.1 | 3.65±0.15 | 2.95±0.15 |
EDR2609 | 2 | 26.0±0.5 | 4.60±0.20 | 13.50±0.50 | 21.7±0.3 | 10.4 | 2.70±0.20 | 2.70±0.20 |
EDR2810 (H) | 2 | 28.0±0.5 | 5.15±0.15 | 13.6±0.3 | 25.3±0.3 | 10.7±0.6 | 3.6±0.25 | |
ED2821 | 1 | 28.0±0.5 | 10.40±0.30 | 12.10±0.50 | 8.5±0.2 | 20.5 | 6.70±0.30 | |
ED2929 | 1 | 29.8±0.8 | 14.80±0.20 | 11.60±0.20 | 8.4±0.2 | 21.8 | 11.20±0.20 | |
ED2919 | 1 | 29.3±0.4 | 9.15±0.15 | 11.70±0.20 | 8.4±0.2 | 21.5 | 6.10±0.20 | |
EDR3208 (H) | 2 | 32.0±0.5 | 4.10±0.20 | 11.70±0.40 | 27.8±0.2 | 8.7 | 2.65±0.20 | 2.20±0.20 |
ED3814 | 3 | 38.2±0.5 | 7.35±0.20 | 14.00±0.20 | 32.0min | 6.0±0.2 | 4.60±0.20 | |
ED4019 | 1 | 40.8±0.5 | 9.70±0.20 | 21.85±0.25 | 11.0±0.3 | 30.3 | 6.25±0.25 | |
EDR4111 | 2 | 41.3±0.5 | 5.65±0.15 | 19.6±0.4 | 37.2±0.35 | 14.7 | 3.15±0.2 | 4.5±0.25 |
ED4214-2 | 3 | 42.7±0.5 | 7.2±0.15 | 15.0±0.3 | 7.0±0.25 | 36.2±0.5 | 4.4±0.15 | |
ED4314 | 3 | 43.6±0.5 | 7.35±0.20 | 16.00±0.25 | 7.4±0.2 | 36.8 | 4.60±0.20 | |
EDR5111 | 2 | 50.8±0.8 | 5.6±0.15 | 19.8±0.4 | 48.5±0.5 | 15.0±0.6 | 3.3±0.2 | 4.6±0.35 |
ED5114 | 3 | 50.0±0.6 | 7.2±0.15 | 27.0±0.35 | 41.4±0.6 | 10.55±0.25 | 4.3±0.15 | |
型号 | 有效参数 | 重量(g) | AL值 AL(nH/N2) | ||
Le(mm) | Ae(mm2) | HCP4 | HCP95 | ||
EDR2510 | 11.3 | 4000±25% | |||
EDR2609 | 20.1 | 58.5 | 13.0 | 2370±25% | |
EDR2810 | 42.3 | 73.2 | 12.4 | 3500±25% | |
ED2821 | 50.3 | 90.0 | 24.0 | 3800±25% | |
ED2929 | 69.2 | 90.0 | 33.6 | 2750±25% | |
ED2919 | 50.3 | 90.7 | 23.2 | 4500±25% | |
EDR3208 | 22.4 | 82.7 | 11.6 | 4400±25% | |
ED3814 | 54.6 | 74.3 | 24.2 | ||
ED4019 | 61.3 | 203.0 | 62.6 | 11500±25% | |
EDR4111 | 158.2 | 33.4 | 4400±25% | ||
ED4214-2 | 54 | 87 | 28.4 | 3200±25% | |
ED4314 | 59.4 | 90.9 | 31 | ||
EDR5111 | 32.83 | 220 | 44.3 | 13000±25% | |
ED5114 | 66.2 | 172 | 64.4 | 7000±25% | |
